| BOILER CONTROLLER WITH 0..10V OUTPUT | |||||||||||||
 |
|||||||||||||
 |
|||||||||||||
| RICCIUS+SOHN has developed another controller for the control system DDC-Regel UNIT 9X compact: The RU 98.1K-110.U controlls a mixed and unmixed heating circuit, a domestic hot water circuit and a demand driven boiler circuit.. The controller was especially developed to control calorifier with a 0-10V input for the modulation. pic. 1 and 2 show typical system diagrams. The controller has 9 preprogrammed system diagrams. |
|||||||||||||
 |
|||||||||||||
 |
|||||||||||||
 |
pic.1 system diagram 51 1 boiler, 1 DHW, 1 mixed heating circuit, continous bourner output 0-10V |
||||||||||||

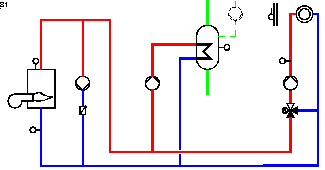

| pic.2 system diagram 81 1 boiler with return temperature limitation, 1 DHW, 1 mixed heating circuit, continous burner output 0-10V |
 |
||||||||||||
