| CLIMATIZING SYSTEM WITH EXTENDED FUNCTIONALITY |
 |
|||||||
 |
||||||||
 |
||||||||
| RICCIUS+SOHN has developed another controller in the control system unit PLUS compact: The controller UPK.L2.1Z for climatizing systems with extended functionality: Functions: Control of a air handling unit with 6 components (heat recovery system, mixing flap, 2 x heater, cooler, humidifier), with 4 timers , energy management Analog inputs: 3x 0..10V, 13x M-sensors. Digital inputs: 30x EK Analog outputs: 4x 0..10V Digital outputs: 12x Relais, 42V AC, Interfaces: CAN-Bus, Optional: SSK, radio clock, M-Bus, SSKM |
||||||||
 |
||||||||
 |

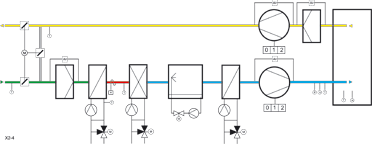

Example:
Climatizing system with mixing flap, 2 x heater, cooler, humidifier, 2-stage ventilator |
|||||||
